When it comes to rugged, reliable connections, two names often pop up: M12 connector and RJ45 boots. But what exactly are they? And how do you choose the right one for your project? Let’s dive into a detailed, yet simple breakdown that’ll make you feel like an expert by the end.
What is an M12 Connector?
Brief Overview of M12 Connectors
Think of the M12 connector as the superhero of the industrial world. It’s a circular connector with 12mm locking threads, built to survive dust, water, and rough handling. Typically found in factory automation, sensor connections, and outdoor applications, it’s all about strength and reliability.
Applications of M12 Connectors
You’ll find M12 connectors in places where standard cables would cry for mercy. We’re talking:
- Industrial automation
- Transportation systems
- Robotics
- Agricultural machinery
- Security systems
Basically, anywhere that screams “tough environment.”
Advantages of Using M12 Connectors
Why do industries love M12 connectors?
- Durability: Resistant to water (IP67 rated and beyond)
- Secure Connection: Twist-lock mechanism
- Versatility: Different coding types for various applications
- High Performance: Great for data transmission, power, and signal
What is an RJ45 Boot?
Understanding RJ45 Boots
Now, shift gears a little. An RJ45 boot is that little plastic cover you see over Ethernet cables. It’s like a mini armor for your cable, protecting it from being yanked out or snapped.
Different Types of RJ45 Boots
Just like shoes come in different styles, RJ45 boots do too:
- Molded Boots: Fixed to the cable; super sturdy
- Snagless Boots: Feature a tab cover to avoid cable damage during pulls
- Slim Boots: Perfect for cramped network spaces
Each type has its charm depending on your setup.
Why RJ45 Boots are Important
Picture this: you’re pulling a cable through a maze of wires, and snap—the connector tab breaks. Nightmare, right? RJ45 boots prevent that by:
- Reducing strain on the connector
- Preventing tab damage
- Improving overall cable longevity
They’re small, but mighty.

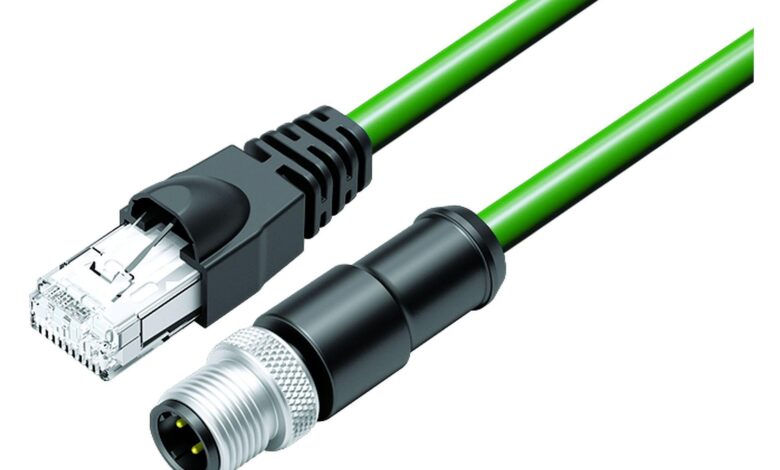

M12 Connector vs RJ45 Boots: Key Differences
Design and Build Quality
M12 connectors are circular, heavy-duty, and designed for extreme environments. Meanwhile, RJ 45 boots are lightweight and flexible, intended to guard Ethernet connectors in everyday settings.
Functionality and Usage
M12s shine in industrial settings—think machines, automation, outdoor sensors. RJ45 boots? They’re your go-to for clean, reliable Ethernet connections in offices, data centers, and home networks.
Performance in Industrial Environments
In tough environments, the M12 connector wins hands down. Waterproof, shock-resistant, dustproof—you name it. RJ45 boots help cables survive light abuse, but they’re not built for harsh conditions.
How to Choose Between M12 Connectors and RJ45 Boots
Considering the Application
Ask yourself: where is the cable going? Industrial machinery demands M12 strength. But if it’s for setting up your home office or managing server racks, an RJ45 with a boot works perfectly.
Durability and Environmental Factors
If you expect exposure to moisture, vibrations, or dust, the M12 connector is your warrior. Otherwise, a good quality RJ45 boot will do the job.
Cost Considerations
M12 connectors are pricier—no surprises there, considering the rugged build. RJ45 boots are much more budget-friendly but remember: you get what you pay for.
Installation Tips for M12 Connectors and RJ45 Boots
Tools You’ll Need
Depending on what you’re installing, you might need:
- Wire strippers
- Crimping tools
- Soldering iron (sometimes for M12)
- Screwdrivers (for mounting M12 connectors)
RJ45 boots usually require no tools beyond standard Ethernet cable assembly gear.
Common Mistakes to Avoid
- For M12 Connectors: Not securing the locking threads properly
- For RJ45 Boots: Forgetting to slide the boot onto the cable before crimping
(We’ve all done that last one. Trust me.)
Future of M12 Connectors and RJ45 Boots
Technology’s moving fast. M12 connectors are evolving to handle faster data speeds (up to 10Gbps Ethernet!). Meanwhile, RJ45 boots are getting smarter with better materials for strain relief and compact designs for high-density environments.
Both have their place—and their future looks pretty bright.
Conclusion
So, what’s the takeaway? M12 connectors are built like tanks for industrial warfare. RJ45 boots are the quiet protectors of your everyday Ethernet cables. Both serve their purpose beautifully. The choice boils down to your specific needs—industrial tough or network smooth.
Remember: the right connector today can save you a ton of headache tomorrow.
FAQs
1. Can I use an M12 connector for Ethernet?
Yes! In fact, M12 connectors are often used for industrial Ethernet where durability is critical.
2. Are RJ45 boots necessary for home networking?
While not strictly necessary, they add protection and extend the lifespan of your Ethernet cables, especially if cables are moved around a lot.
3. What does “IP67” mean for M12 connectors?
IP67 means the connector is dust-tight and can withstand immersion in water up to 1 meter deep for 30 minutes.
4. Do RJ45 boots affect internet speed?
Nope! RJ45 boots only protect the connector; they don’t impact data transmission speed.
5. How do I know if I need an M12 connector?
If you’re wiring something exposed to vibration, moisture, dust, or extreme conditions—go for the M12.
